Best 3 Phase Motor Starter in India: DOL, Star-Delta, Oil-Immersed & Soft Starters
Engineered by BeeBee Electricals & Electronics Pvt. Ltd, our comprehensive range of 415V 3-phase motor starters delivers maximum starting torque, zero nuisance tripping, and heavy-duty thermal overload protection across all industrial machinery, submersible pumps, and commercial drives.
• Range: 1 HP to 350 HP (415V AC, 3-Phase, 50 Hz) • Tested to IS/IEC 60947-4-1 Standards
1. Finding the Best 3 Phase Motor Starter in India: Critical Engineering Criteria
In Indian industrial plants, agricultural farms, commercial facilities, and municipal water works, three-phase induction motors are the workhorses that drive mission-critical machinery. Selecting the best 3 phase motor starter is the single most important decision to ensure uninterrupted production, protect multi-lakh-rupee motor assets, and minimize utility power factor penalties.
Operating conditions across India present severe electrical challenges: wide supply voltage swings (dipping below 320V in summer and surging above 470V), sudden single-phasing on rural feeder lines, high ambient temperatures (often exceeding 45°C), and airborne dust or humidity. A truly superior 3 phase motor starter must combine rugged electromechanical contact materials, ambient-compensated bimetallic protection relays, and intelligent electronic trip logic.
BeeBee Electricals & Electronics Pvt. Ltd builds three-phase starters that excel in these exact environments through four core engineering advantages:
- Silver-Cadmium Oxide (AgCdO) Heavy Duty Contacts: Withstand high inrush currents and repetitive switching cycles without contact welding, burning, or pitting.
- Built-in Single Phase Preventers (SPP): Instantaneously de-energizes the main contactor coil within 1.5 seconds if any single phase drops out, preventing fatal winding burnouts.
- Ambient-Compensated Thermal Protection: Ensures consistent tripping accuracy across varying ambient temperatures from -10°C in North Indian winters to +55°C in industrial furnace environments.
- Robust Deep-Drawn IP54/IP65 Sheet Steel Enclosures: Fully sealed with multi-stage powder coating to resist dust, moisture, and chemical corrosion.
2. Complete Lineup of 3 Phase Motor Starters Manufactured by BeeBee Electricals
To meet diverse torque demands and starting current limitations, we manufacture four distinct categories of 3 phase motor starters:
A. 3 Phase Direct-On-Line (DOL) Starters (0.5 HP to 7.5 HP)
The benchmark for simplicity, durability, and full starting torque. BeeBee 3-phase DOL starters connect motor windings directly to 415V supply, providing maximum breakdown torque for instant machine startup.
- Ideal Power Range: 0.5 HP to 7.5 HP (0.37 kW to 5.5 kW).
- Starting Inrush Current: 6x to 8x Full Load Current (FLC).
- Standard Features: Start/Stop pushbutton with lockout, Class 10A thermal relay, and wide coil operating voltage range (280V to 450V).
- Best For: Agricultural tubewell pumps, small compressors, lathe machines, exhaust blowers, and conveyor drives.
B. 3 Phase Fully Automatic Star-Delta Starters (7.5 HP to 75 HP)
The industry standard for reducing severe line disturbances. BeeBee Star-Delta starters start the motor in Star configuration (reducing starting current to ~33%) and automatically transition to Delta mode via a precision electronic timer.
- Ideal Power Range: 7.5 HP to 75 HP (5.5 kW to 55 kW).
- Starting Inrush Current: Reduced to approx. 2x to 2.5x FLC.
- Standard Features: Triple contactor arrangement with mechanical and electrical interlocks, digital timer, and SPP module.
- Best For: Industrial chillers, centrifugal pumps, plastic injection molding, flour mills, and textile blowers.
C. 3 Phase Oil Immersed Starters (3 HP to 100 HP)
Built specifically for harsh Indian rural and farming conditions. The entire switching contact assembly and thermal relays operate fully submerged in high-dielectric mineral transformer oil (IS 335).
- Ideal Power Range: 3 HP to 100 HP (2.2 kW to 75 kW).
- Core Advantage: Instant arc quenching, zero contact oxidation, and exceptional thermal buffer during severe rural low-voltage periods.
- Best For: Deep agricultural borewells, rice mills, oil expellers, sawmills, and stone crushers.

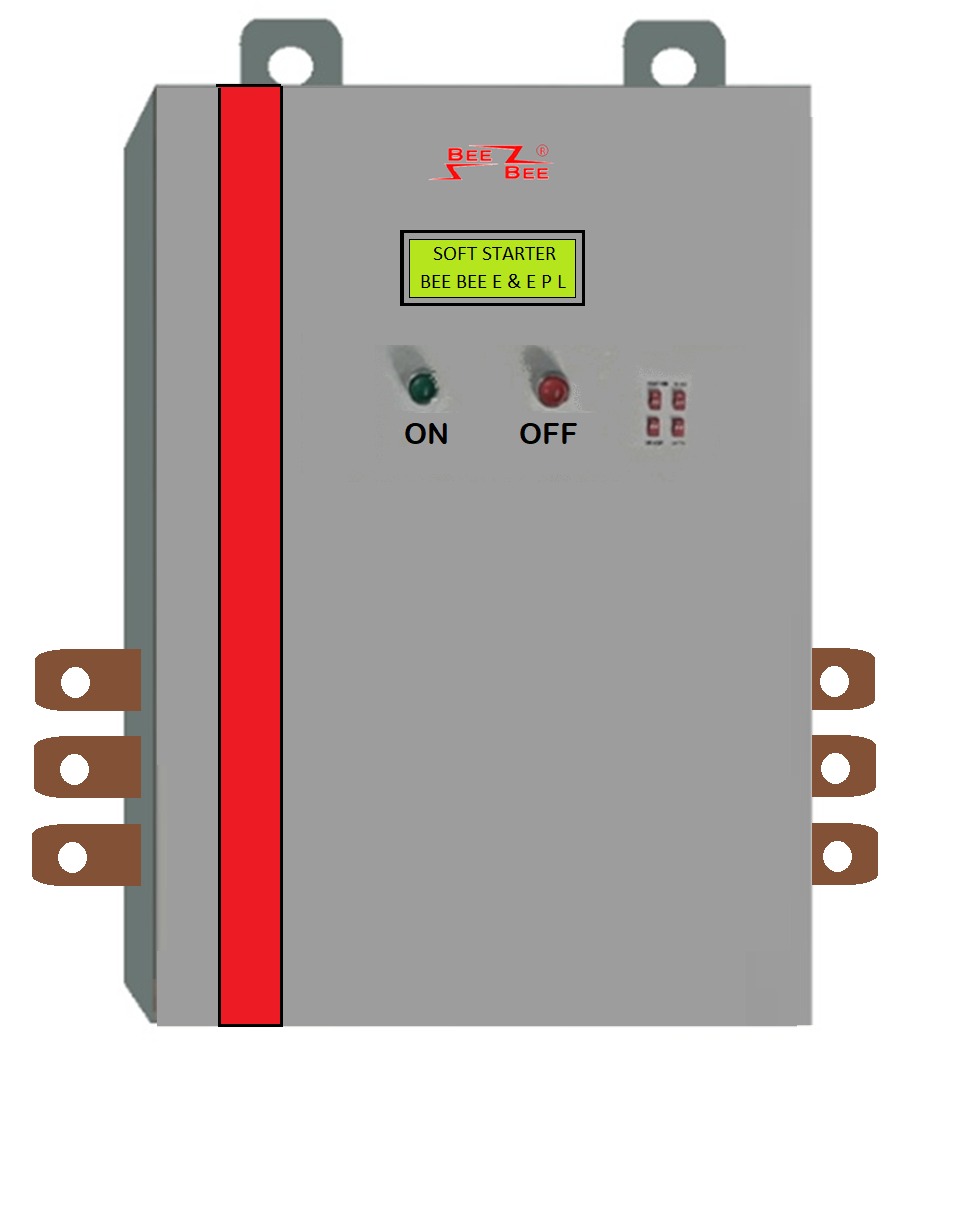

D. 3 Phase Solid-State Soft Starters & MCC Panels (10 HP to 350 HP)
The pinnacle of modern motor control. Microprocessor-governed thyristor voltage ramping eliminates mechanical jerk, belt slippage, and pipeline water hammer effects.
- Ideal Power Range: 10 HP to 350 HP (7.5 kW to 260 kW).
- Core Advantage: Smooth stepless starting/stopping, programmable current limits, internal bypass contactors, and Modbus communication.
- Best For: Wastewater treatment plants, heavy mining conveyors, overhead cranes, and continuous process lines.
3. Technical Specifications & Sizing Matrix for 3 Phase Motor Starters
Compare engineering parameters across our 415V 3-phase motor starter product lines:
| Specification Parameter | 3-Phase DOL Series | 3-Phase Star-Delta Series | 3-Phase Oil Immersed Series | 3-Phase Soft Starter Series |
|---|---|---|---|---|
| Rated Supply Voltage (Ue) | 415V AC ± 15%, 3-Phase | 415V AC ± 15%, 3-Phase | 415V AC ± 15%, 3-Phase | 415V / 690V AC ± 15%, 3-Phase |
| Rated Supply Frequency | 50 Hz / 60 Hz ± 5% | 50 Hz / 60 Hz ± 5% | 50 Hz ± 5% | 50 Hz / 60 Hz ± 5% |
| Motor HP Rating Range | 0.5 HP to 7.5 HP | 7.5 HP to 75 HP | 3 HP to 100 HP | 10 HP to 350 HP |
| Starting Current (% of FLC) | 600% - 800% | 200% - 280% | DOL: 600% / Y-Δ: 200% | 150% - 400% (Adjustable) |
| Starting Torque (% of FLT) | 150% - 250% | 30% - 60% | Full / Reduced | 20% - 100% (Programmable) |
| Switching Duty Category | AC-3 / AC-4 Heavy Duty | AC-3 Continuous Duty | Submerged AC-3 Duty | SCR + AC-1 Bypass |
| Relay Trip Class | Class 10A Bimetallic | Class 10A / 20 Bimetallic | Triple-Pole Oil Dashpot/Bimetal | Electronic Class 5 to 30 |
| Single Phase Protection | Differential Phase Trip | Electronic SPP Module | Magnetic Differential Trip | Digital Microprocessor SPP |
| Enclosure Protection | IP54 / IP65 Sheet Steel | IP54 / IP65 Metal Cabinet | IP54 Oil Tank Enclosure | IP42 / IP54 Control Cubicle |
| Standard Compliance | IS/IEC 60947-4-1, CE | IS/IEC 60947-4-1, ISO 9001 | IS 13947 (Part 4) | IEC 60947-4-2, IEEE 519 |
4. 3 Phase Motor Current Sizing Chart (415V, 50 Hz Standard)
Use this quick reference sizing guide to determine the exact full load current (FLC) and relay setting for standard 3-phase, 415V induction motors in India:
| Motor Power (HP / kW) | Approximate Full Load Current (415V) | Recommended Starter Type | Overload Relay Setting Range |
|---|---|---|---|
| 3 HP (2.2 kW) | 4.5 - 4.8 Amps | 3-Phase DOL Starter | 3.5 - 5.5 Amps |
| 5 HP (3.7 kW) | 7.2 - 7.5 Amps | 3-Phase DOL Starter | 6.0 - 9.0 Amps |
| 7.5 HP (5.5 kW) | 10.5 - 11.0 Amps | 3-Phase DOL / Star-Delta | 9.0 - 14.0 Amps (DOL) / 6.0 - 9.0 Amps (Y-Δ) |
| 10 HP (7.5 kW) | 14.0 - 14.8 Amps | 3-Phase Star-Delta Starter | 8.0 - 11.5 Amps (Phase loop) |
| 15 HP (11.0 kW) | 20.5 - 21.5 Amps | 3-Phase Star-Delta Starter | 11.5 - 15.0 Amps (Phase loop) |
| 20 HP (15.0 kW) | 27.0 - 28.5 Amps | 3-Phase Star-Delta / Soft Starter | 15.0 - 20.0 Amps (Phase loop) |
| 25 HP (18.5 kW) | 34.0 - 35.5 Amps | 3-Phase Star-Delta / Soft Starter | 19.0 - 25.0 Amps (Phase loop) |
| 30 HP (22.0 kW) | 40.0 - 42.0 Amps | 3-Phase Star-Delta / Soft Starter | 23.0 - 30.0 Amps (Phase loop) |
| 50 HP (37.0 kW) | 65.0 - 68.0 Amps | 3-Phase Star-Delta / Soft Starter | 37.0 - 45.0 Amps (Phase loop) |
5. Industrial Troubleshooting Guide for 3 Phase Motor Starters
Quickly diagnose and rectify common 3-phase starter faults with this field guide:
| Fault Observed | Probable Cause | Recommended Corrective Action |
|---|---|---|
| Starter chatters or refuses to latch ON | Control circuit voltage below 320V, burnt holding coil, or open auxiliary contact. | Measure incoming voltage across coil terminals; check coil resistance; replace auxiliary contact block if oxidized. |
| Starter trips on Single Phasing immediately | Blown incoming backup fuse on one phase, loose cable terminal, or utility line fault. | Test 3-phase input voltage with multimeter; replace blown HRC fuses; torque all terminal lugs. |
| Motor starts but Star-Delta does not shift to Delta | Defective electronic transition timer or Star/Delta contactor auxiliary interlock failure. | Check timer control supply; replace timer unit; inspect NC interlocking contacts on Delta contactor. |
| Contactor contacts weld during high load | Excessive motor locked-rotor current, severe low voltage drop, or undersized contactor rating. | Upgrade to heavy-duty AC-4 contactor; inspect upstream power line regulation; check mechanical motor binding. |
6. Frequently Asked Questions (FAQ) - Best 3 Phase Motor Starter in India
Q1: Which is the best 3 phase motor starter in India for agricultural submersible pumps?
For agricultural tubewell pumps, BeeBee 3-Phase Oil Immersed Starters and BeeBee Heavy-Duty Automatic Star-Delta Panels are the top choices across India because they provide superior arc quenching, operate reliably under low voltage, and include built-in Single Phase Preventers (SPP).
Q2: Why is a Single Phase Preventer (SPP) essential in 3 phase starters?
If one phase loses power while a 3-phase motor is running, the current in the remaining two phases shoots up by 1.73 times. Without an SPP, the motor windings will overheat and burn out in minutes. BeeBee starters include electronic SPP modules that trip control power in under 1.5 seconds.
Q3: What is the price range of 3 phase motor starters manufactured by BeeBee Electricals?
Our 3-phase DOL starters start from approx. ₹2,950, while heavy-duty Automatic Star-Delta and Oil-Immersed models range from ₹7,500 to ₹35,000+ depending on horsepower capacity, enclosure type, and protection accessories.
Q4: How do I order or get direct factory pricing in India?
Fill out the inquiry form below to automatically connect to our technical sales desk on WhatsApp at +91 9903646469, or call us directly for instant quotations and product datasheets.
